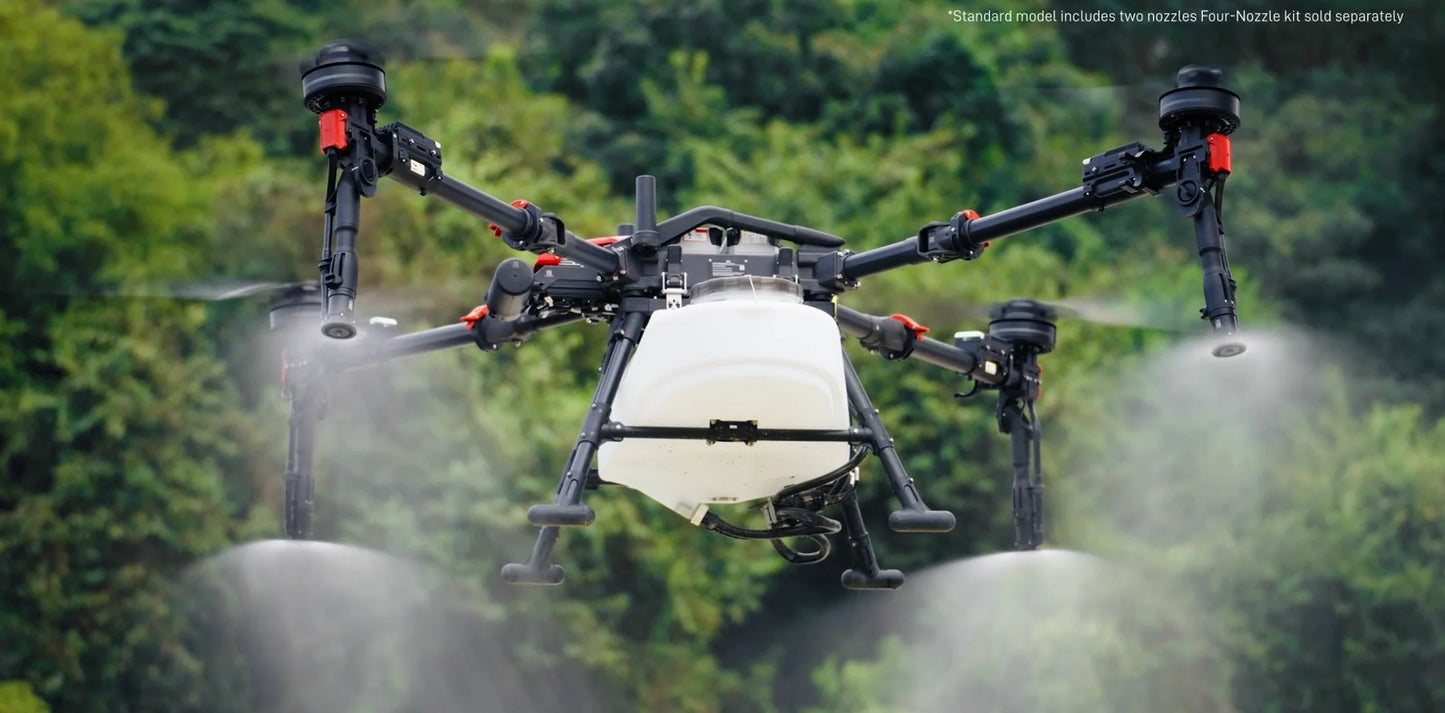

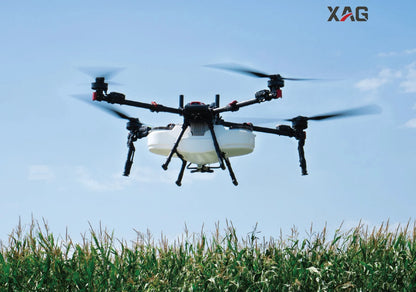

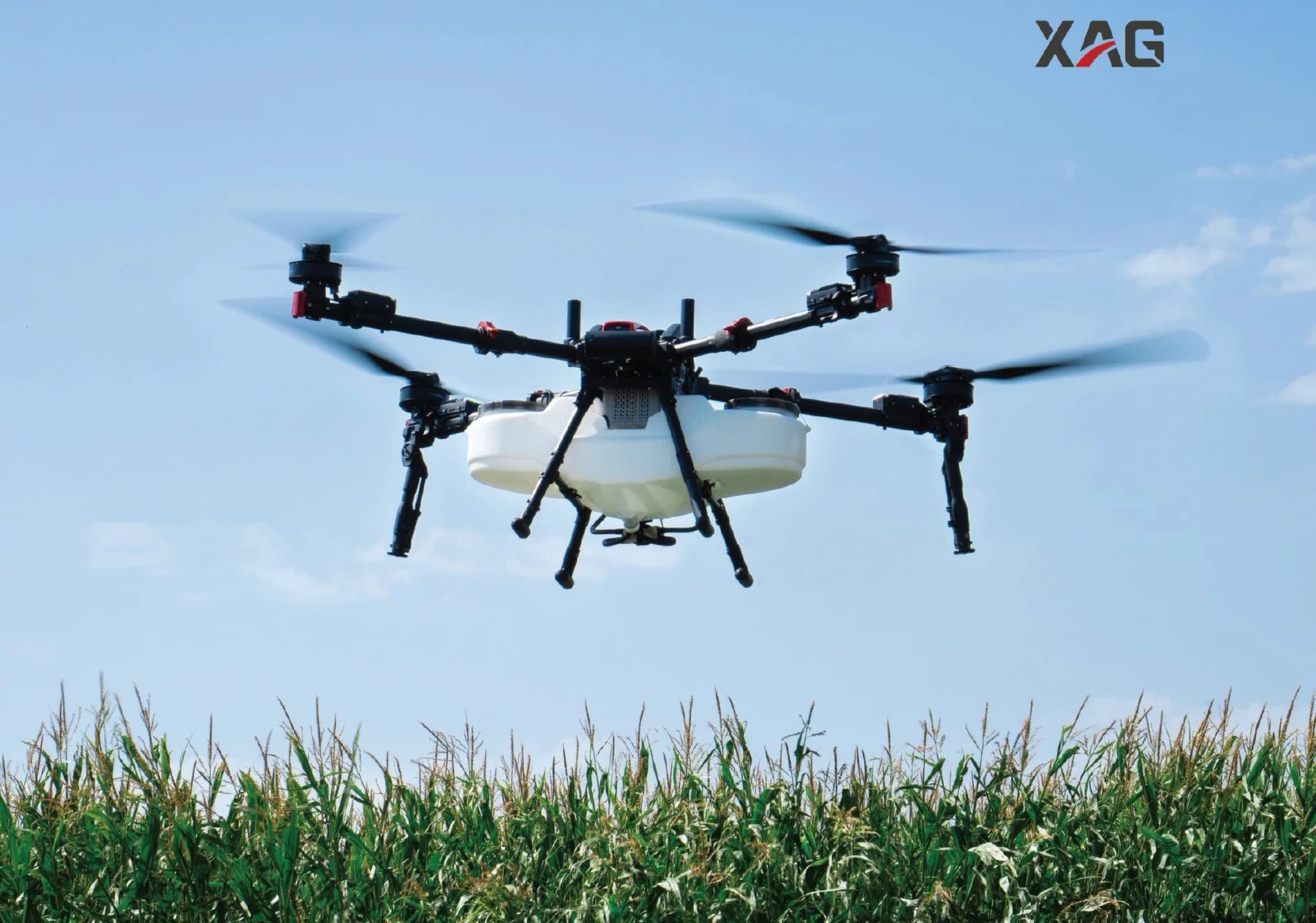

XAG P150 MAX Ultimate Kit

The Complete Arsenal. Spray and Spread, All Day Long.

The XAG P150 MAX Ultimate Kit is built for operators who refuse to compromise. Six batteries, four chargers, dual cooling towers, parallel charging, RTK precision — plus the RevoCast 5 granule spreading system so you can spray and spread from a single platform. This is the kit that turns one aircraft into a full-service aerial application business.

If you're covering hundreds of acres a day across multiple crop types and application methods, the Ultimate Kit eliminates the need to buy anything else. Unbox it, charge it, fly it.

📦 What's Included

• 1× XAG P150 Max Agricultural Drone with RevoSpray 5 (INTL)
• 1× XAG SRC5 Smart Remote Controller (INTL)
• 1× XAG XRTK7 Mobile Station (INTL)
• 4× XAG CM13600S Charger (INTL)
• 6× XAG B141050 Smart Super Charge Battery (INTL)
• 2× XAG 2024 Battery Cooling Tower (INTL)
• 2× XAG 6kW Parallel Charging Kit
• 1× XAG P150 Max RevoCast 5 (with Screw Feeder L)

Package Configuration: Ultimate Kit (14KW 6B4C) — six batteries with four chargers and 14kW of parallel charging capacity. With two extra batteries in the rotation, you'll never wait on a charge cycle. The included RevoCast 5 makes this a dual-purpose spray and spread platform out of the box.

⚡ Why the Ultimate Kit Is the Move

Six batteries changes the game. While four batteries keep you moving, six gives you a true buffer — you can fly two consecutive loads while four batteries charge simultaneously across your two parallel kits. No waiting. No thermal stress from rapid back-to-back charging. Your batteries last longer because they get more cooling time between cycles.

And with the RevoCast 5 included, you're not just a spray operator — you're a full aerial applicator. Swap from liquid spraying to granular fertilizer, seed, or feed spreading in minutes. One aircraft, two revenue streams.

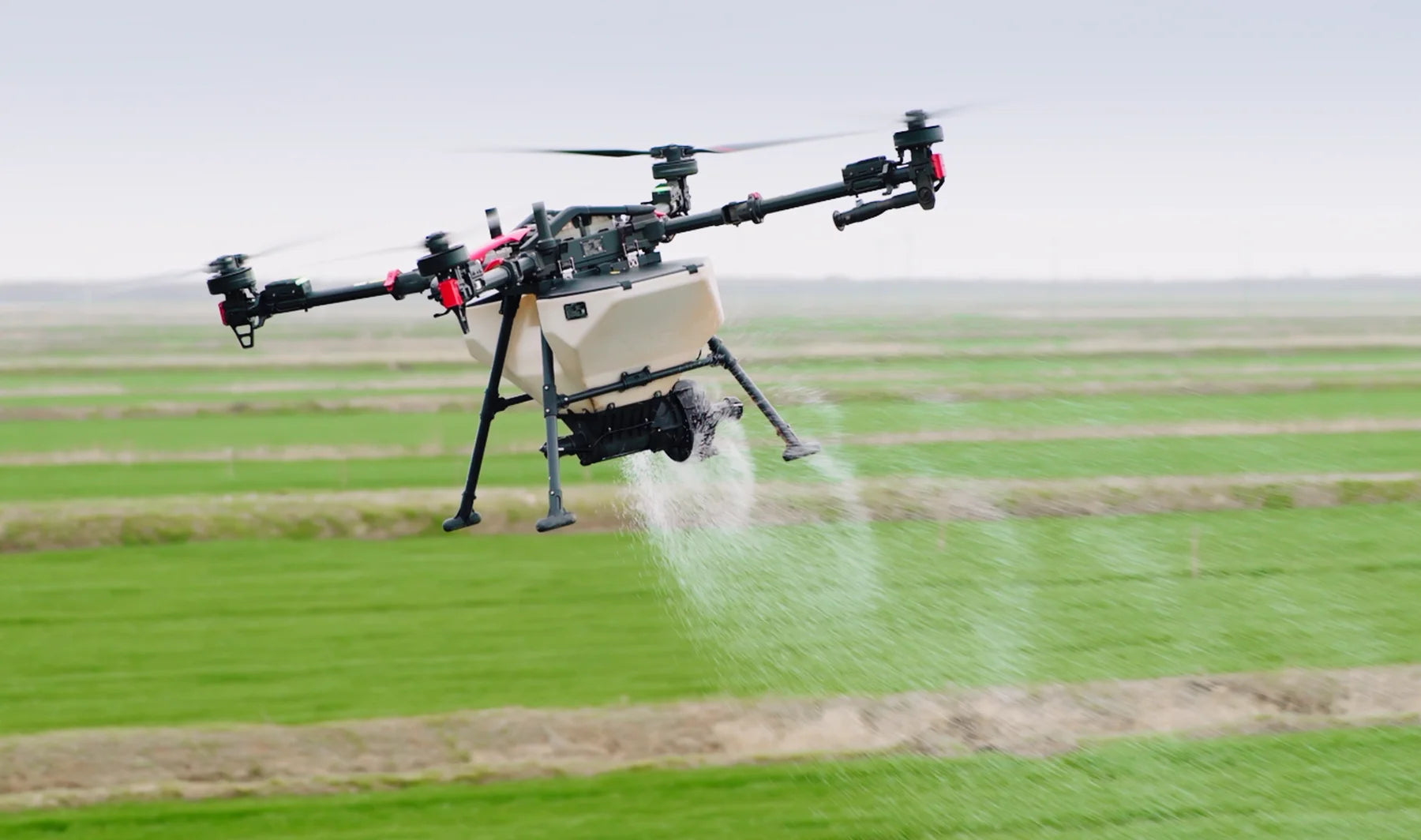

🌾 RevoCast 5 — Granule Spreading System

• Container Capacity: 115L granule hopper
• Feeder Type: Screw Feeder L — precision metering for consistent spread rates
• Max Spread Rate: Up to 300 kg/min
• Applications: Granular fertilizer, seed broadcasting, aquaculture feed, cover crop seeding
• Swap Time: Quick-disconnect design — switch between RevoSpray 5 and RevoCast 5 in minutes

The Screw Feeder L provides metered, consistent output across the full spread width — no clumping, no gaps. Ideal for precision fertilizer application and broadcast seeding operations where uniform distribution matters.

🚁 Aircraft Performance — XAG P150 MAX

🧠 Intelligence & Safety

• 🛰️ SuperX 5 Ultra Controller: XAG's most powerful flight computer — handles complex autonomous missions with increased processing headroom
• 📡 4D Imaging Radar: Full-spectrum obstacle detection from 4.9 ft to 328 ft — penetrates darkness, rain, fog, and dust clouds
• 📐 RTK Precision (XRTK7): ±3.9 in hovering accuracy — centimeter-level positioning for overlap-free passes on every run
• 📹 Wide-Angle HD FPV Camera: Real-time first-person view for line-of-sight confidence and safer operations
• 🔒 Obstacle Avoidance: Automatic braking and hover at 8.2 ft from obstacles at speeds up to 45.3 ft/s — horizontal FOV ±40°, vertical ±15°
• 💧 IPX6K Waterproof: Pressure-wash rated — hose down the entire airframe after every job without worry

🔌 Additional Compatible Task Systems

• 🗺️ RealTerra: HD multispectral mapping for prescription application and crop health analysis

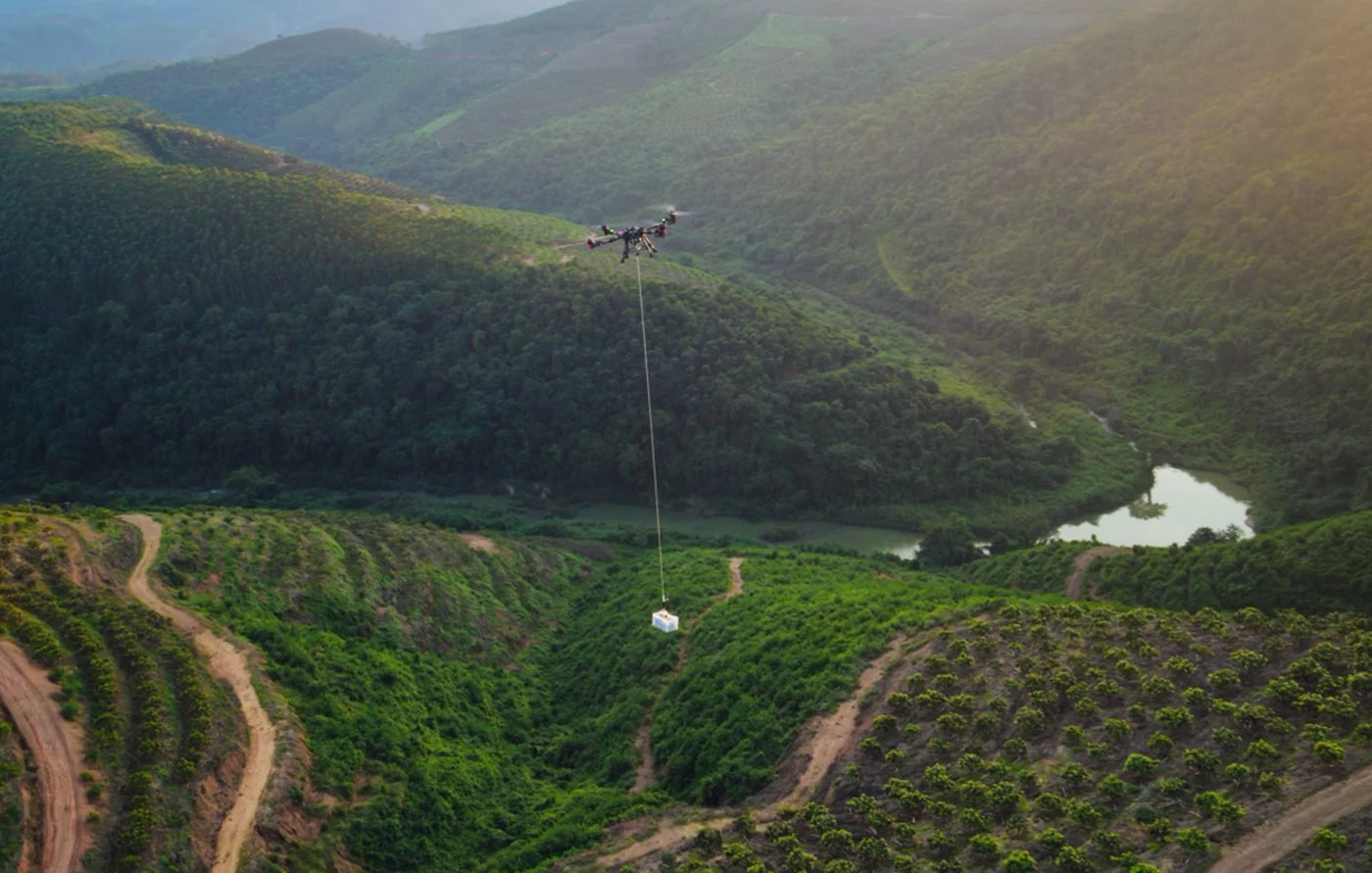

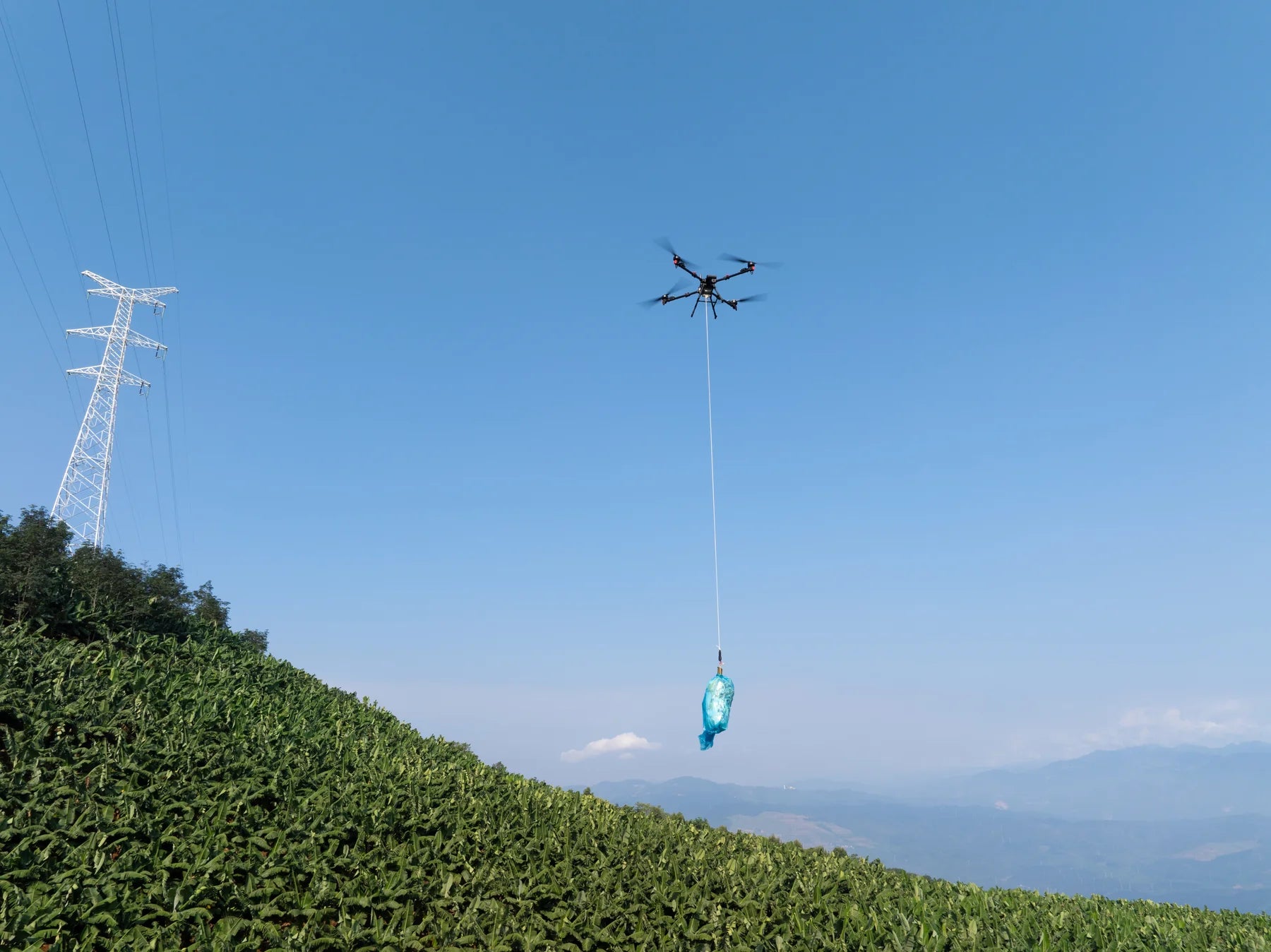

• 📦 RevoSling: Cargo transport up to 176 lbs — haul inputs, produce, and equipment across tough terrain

🔋 Power Infrastructure Breakdown

• Battery: XAG B141050 Smart SuperCharge — rapid-cycle design with integrated thermal management
• Charger: XAG CM13600S — high-output charging matched to the B141050 platform
• Parallel Charging: 2× 6kW kits deliver 14kW total — charge two batteries simultaneously per kit
• Cooling Towers: Active forced-air cooling keeps batteries in optimal temp range during aggressive charge cycles
• 6-Battery Rotation: Fly two loads while four batteries charge — eliminates all ground wait time
• Battery Warranty: 1,500 cycles or 12 months (whichever comes first)

💡 Who Is This Kit For?

• Commercial operators who need both spray and spread capability from a single platform
• High-volume applicators covering 300+ acres per day who can't afford any charging downtime

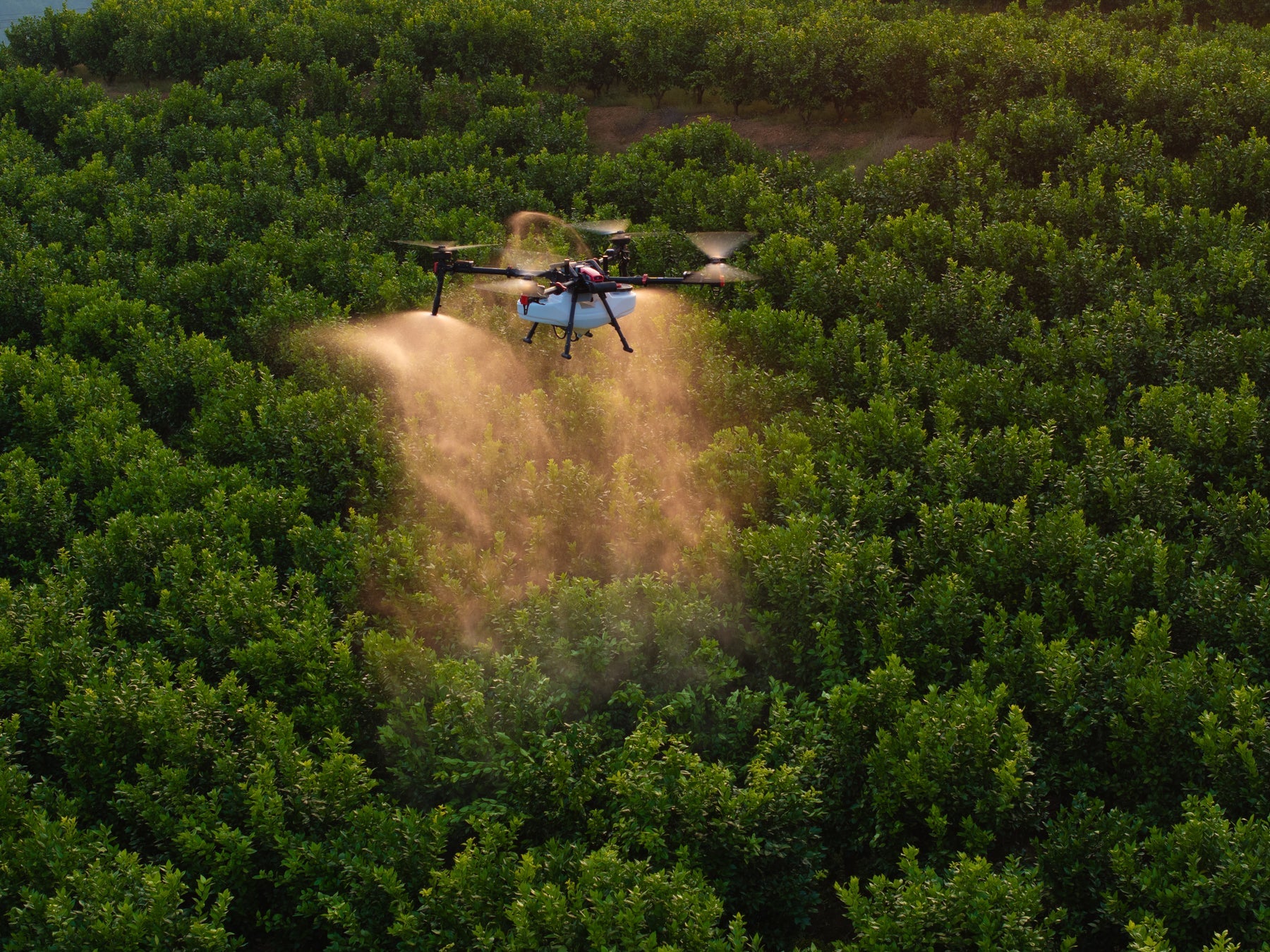

• Operations serving row crops, orchards, and pasture that need liquid and granular application
• Operators who want the most complete package available — no add-ons, no second orders, no gaps

📋 Licensing Requirements

Agricultural drone spraying requires FAA Part 107 certification, FAA Part 137 agricultural aircraft operator certificate, and applicable state pesticide applicator licensing. Need help? We offer consulting services to get you licensed and operational fast.

🎯 Drone Spray Pro's Take

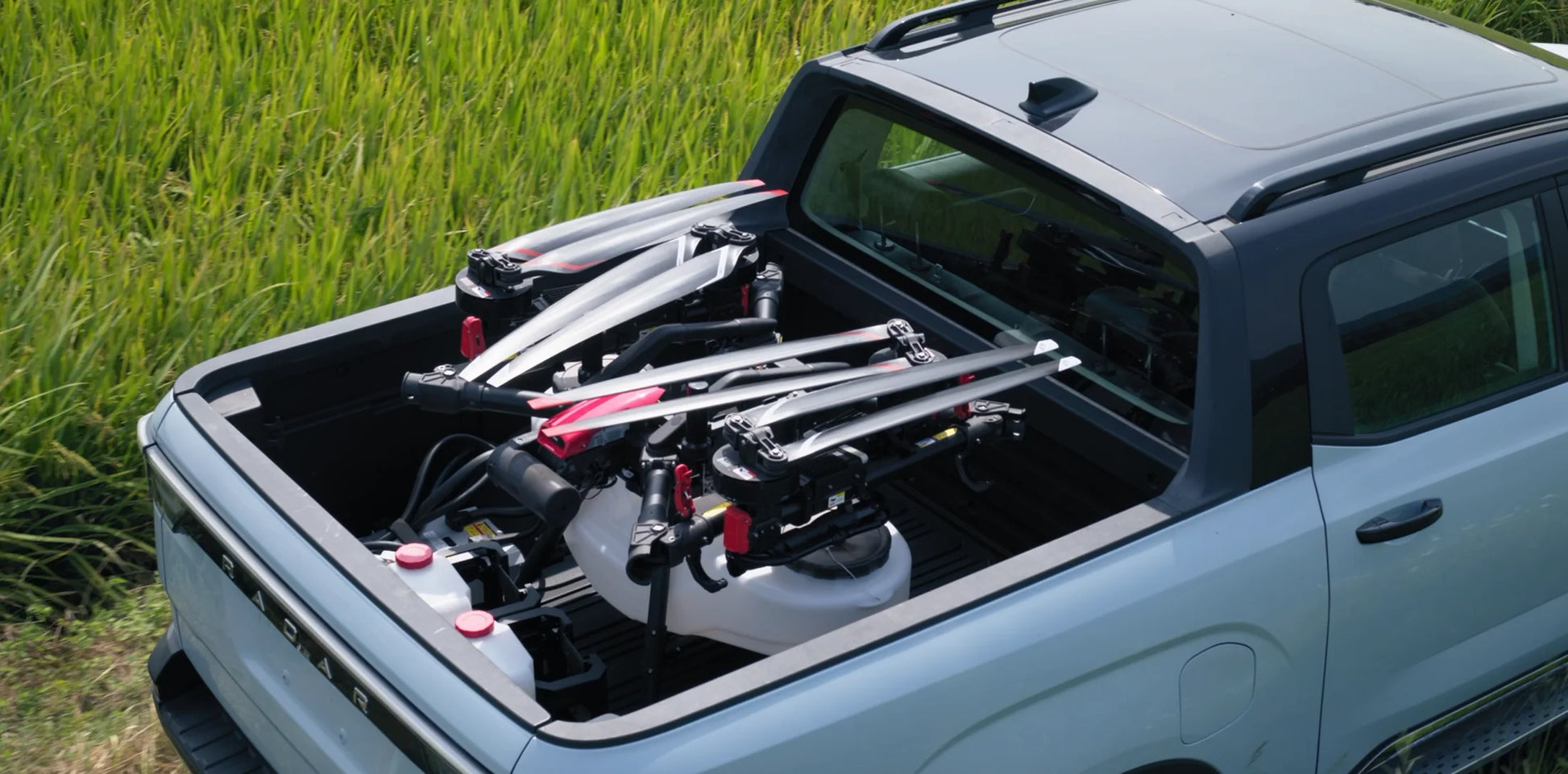

This is the kit for operators who are serious about building a real aerial application business. Six batteries with four chargers means you'll never sit idle waiting on a charge — the extra two batteries create a seamless rotation that keeps you in the air all day without cooking your cells on rapid back-to-back cycles. The RevoCast 5 is what separates this from the Standard Kit — it doubles your service offering overnight. Spray fungicide in the morning, broadcast fertilizer in the afternoon, all from the same truck and the same aircraft. If you're going to invest in this platform, invest once and get everything. That's what the Ultimate Kit is.
