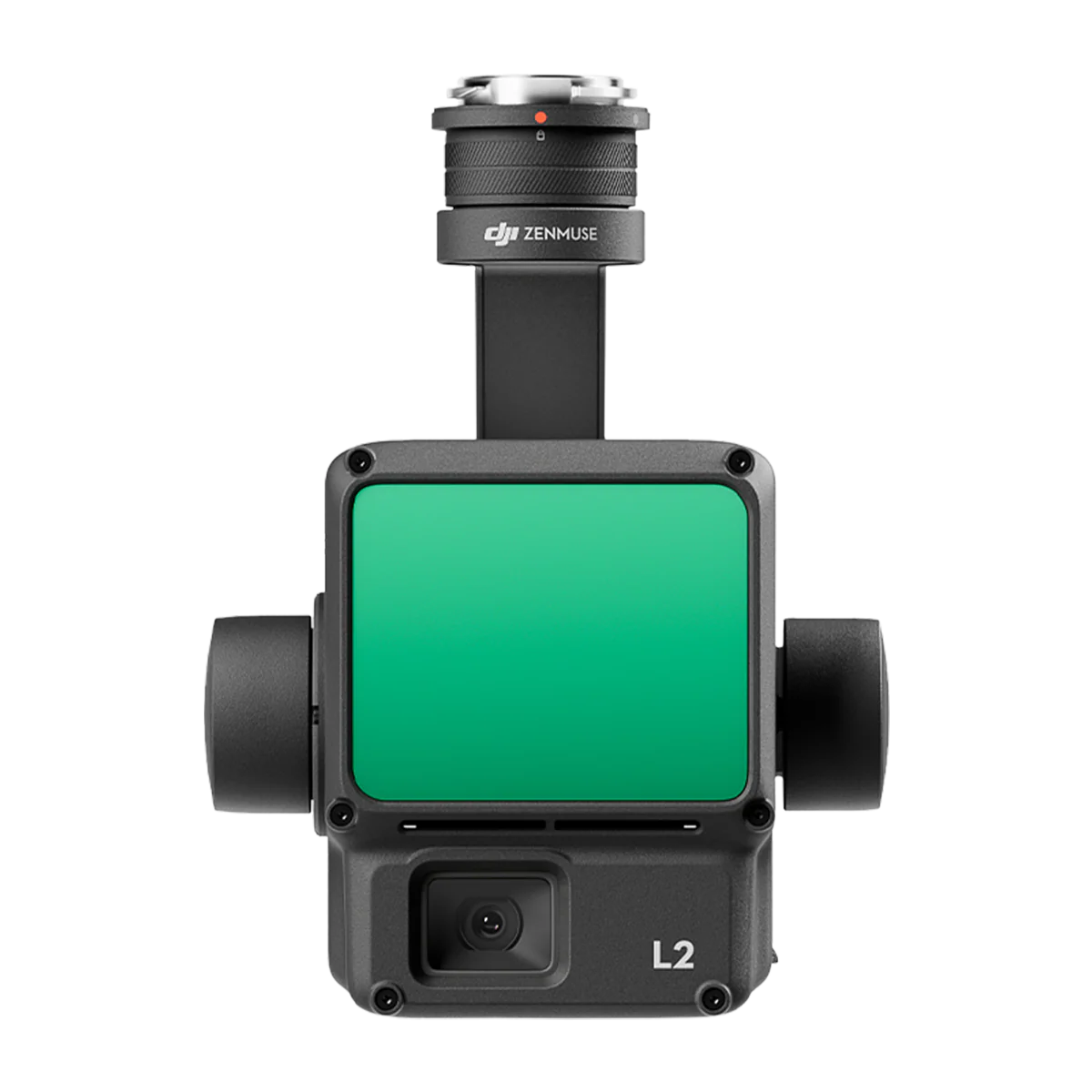

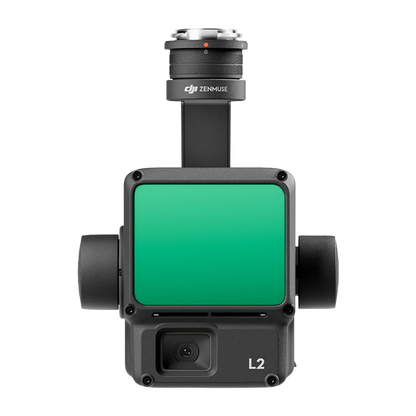

DJI Zenmuse L2 Camera - High-Precision Aerial LiDAR System

DJI Zenmuse L2 LiDAR System – Enterprise-Grade 3D Mapping Power

Take your mapping and surveying capabilities to the next level with the DJI Zenmuse L2 — DJI’s advanced, fully integrated LiDAR solution built for precision, efficiency, and real-world field performance.

Designed to pair seamlessly with the DJI Matrice 350 RTK, the Zenmuse L2 delivers high-accuracy point cloud data, true-color mapping, and powerful on-site processing when combined with DJI Terra.

Whether you're mapping farmland, scanning powerlines, surveying timber, or managing infrastructure projects, the L2 is built to perform.

🔍 High-Precision LiDAR Performance

The Zenmuse L2 combines:

• Integrated frame-based LiDAR

• High-accuracy self-developed IMU

• RTK positioning system

• 20MP RGB mapping camera

Accuracy Specs:

• Vertical Accuracy: 4 cm

• Horizontal Accuracy: 5 cm

With tightly integrated GNSS + IMU data fusion, you get reliable, repeatable, survey-grade results — without complicated setup.

🚀 Faster Data Collection. Greater Efficiency.

• Effective Point Cloud Rate: Up to 240,000 points per second

• Detects up to 250m at 10% reflectivity

• Detects up to 450m at 50% reflectivity

• Operational altitude up to 120 meters

• Map up to 2.5 km² in a single flight

Power on, get RTK FIX, and go.
No IMU warm-up required.

For busy professionals, that means less downtime and more productivity.

🌲 Smaller Laser Spots = Denser, More Detailed Models

Compared to the L1, the L2 features:

• 4×12 cm laser spot size at 100m

• 30% increased detection range

• Support for 5 returns

This means:

• Better vegetation penetration

• More ground points beneath canopy

• Higher-quality Digital Elevation Models (DEM)

• Improved structural detail for powerlines and infrastructure

Perfect for forestry, utility inspection, and terrain modeling.

📷 Integrated 20MP RGB Mapping Camera

The built-in 4/3 CMOS camera features:

• Mechanical shutter

• 3.3 μm pixel size

• 20MP effective resolution

• 0.7-second photo interval

• Rated for up to 200,000 shutter cycles

Capture:

• True-color point clouds

• Orthomosaics

• High-resolution mapping imagery

• Video when LiDAR isn’t required

You get LiDAR + RGB in one integrated payload.

🔄 Dual Scanning Modes for Maximum Flexibility

Repetitive Scanning Mode

• Uniform, ultra-precise mapping

• Ideal for survey-grade applications

Non-Repetitive Scanning Mode

• Enhanced penetration

• Better structural data

• Ideal for forestry and powerline inspection

The frame-based design ensures up to 100% effective point cloud data rate with stable 3-axis gimbal performance.

🧠 Smarter Workflow with DJI Terra

When paired with DJI Terra, users can:

• Preview and playback point clouds in-field

• Generate auto task quality reports

• Merge and process data with one-click workflows

• Use PPK solutions for enhanced accuracy

It’s a complete, turnkey ecosystem — from flight to finished model.

🌎 Ideal Applications

• Land surveying & topographic mapping

• Agriculture terrain modeling

• Forestry analysis & canopy penetration

• Powerline inspection

• Construction & infrastructure management

• Utility corridor mapping

For professionals who demand efficiency, precision, and reliability, the DJI Zenmuse L2 delivers unmatched performance in a compact enterprise payload.

Why Buy from Drone Spray Pro?

At Drone Spray Pro, we don’t just sell equipment — we use it.

✔ Expert guidance before and after the sale
✔ Real-world experience in agriculture and field operations
✔ U.S.-based support
✔ Fast shipping
✔ Financing options available

If you’re ready to step into high-precision LiDAR mapping with a proven enterprise platform, the DJI Zenmuse L2 is built for the job.
