7 Common Spray Drone Problems and Their Solutions
Spray drones can revolutionize agriculture, but they come with challenges. Here are seven common problems and their solutions to help you get the best results:
- Uneven Spray Coverage: Adjust flight height (6–10 ft), speed (7–13 mph), and nozzle type to ensure even application.
- Battery Issues: Manage battery life by avoiding extreme temperatures, calibrating regularly, and keeping spares ready.
- GPS Signal Problems: Minimize interference by flying in open areas and updating software.
- Clogged Nozzles: Clean nozzles after each use with water, vinegar, or alcohol to prevent blockages.
- Spray Drift: Use low-drift nozzles, spray in calm weather (2–10 mph wind), and adjust droplet size.
- Weather Challenges: Monitor local conditions and spray during moderate temperatures and humidity.

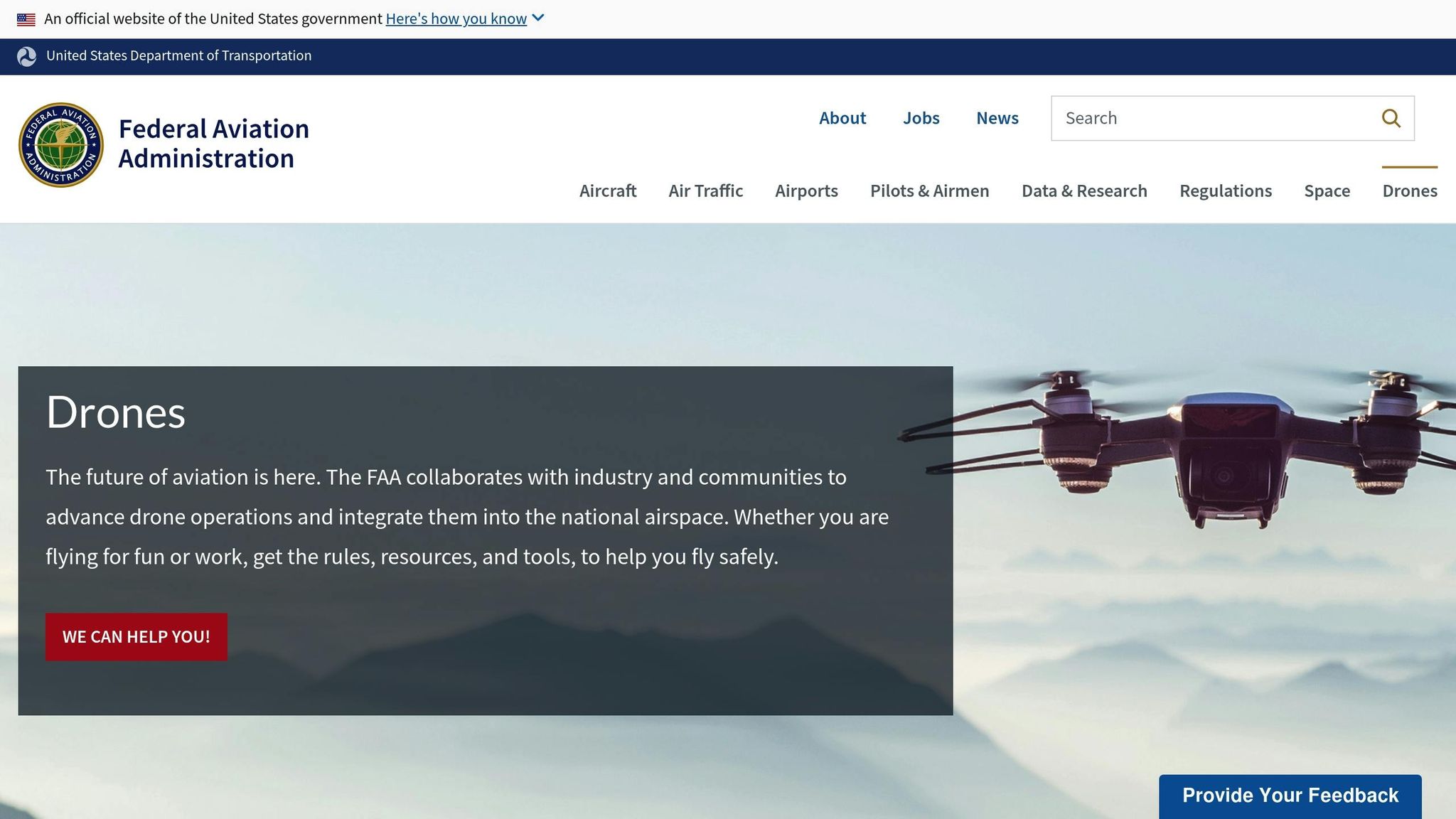

- FAA Regulations: Obtain necessary permits (e.g., Part 107, Part 137) and follow operational guidelines.
Quick Comparison Table
| Problem | Key Causes | Solutions |
|---|---|---|
| Uneven Spray Coverage | Height, speed, nozzle type | Adjust settings and overlap flight paths |
| Battery Issues | Temperature, overcharging | Calibrate, store properly, and rotate usage |
| GPS Signal Problems | Interference, obstacles | Fly in open areas and update firmware |
| Clogged Nozzles | Debris, mineral buildup | Clean nozzles and use filters |
| Spray Drift | Wind, droplet size | Use low-drift nozzles and spray in calm weather |
| Weather Challenges | Extreme conditions | Monitor weather and adjust spraying times |
| FAA Regulations | Lack of permits | Obtain necessary certifications and comply |
Also Read: Essential Maintenance Guide for Your Ag Drone
1. Spray Coverage Problems
Uneven spray coverage is a major challenge in agricultural drone operations. When chemicals aren't applied evenly, it results in wasted resources and reduced effectiveness in treating crops.
Why Spraying Goes Wrong
Several factors can lead to uneven spray coverage when using drones:
Height and Speed Issues Flying too high or too fast can cause inconsistent spray patterns.
Equipment Problems
"New spray tips will produce uniform distribution when properly set up. These sprays are so precisely manufactured that even small amounts of dirt or residue can affect the output of the spray nozzle."
| Coverage Factor | Impact on Spraying | Solution |
|---|---|---|
| Flight Height | Drift and uneven coverage | Maintain 6-10 feet above crops |
| Speed | Chemical waste or gaps | Keep between 7-13 mph |
| Wind Conditions | Spray drift | Operate in 2-10 mph winds |
| Nozzle Selection | Application accuracy | Match nozzle to chemical type |
How to Fix Spray Coverage
You can address these issues with specific adjustments and careful planning:
Optimal Flight Planning
Plan flights with a 10–30% overlap to ensure full coverage. Use RTK-enhanced GPS for precise navigation, down to the centimeter.
Equipment Selection
Choose nozzles based on the chemical being applied:
- Flat Fan: Works well for herbicides and fungicides
- Cone Nozzle: Best for insecticides and fertilizers
- Air Induction: Helps reduce spray drift
- Dual Nozzle: Suitable for handling multiple applications
Weather Timing
Spray at the right time to avoid weather-related problems:
- Early morning or late evening
- Wind speeds between 2-10 mph
- Temperatures below 86°F
- Avoid spraying in direct sunlight
Maintenance Protocol
Proper maintenance ensures consistent performance:
- Calibrate nozzles regularly
- Clean tanks and nozzles thoroughly
- Use filters and strainers to prevent clogs
- Double-check tank measurements before spraying
2. Battery Life Issues
Battery performance plays a critical role in the success of spray drone operations. Without reliable battery efficiency, maintaining consistent performance becomes a challenge.
Battery Problems to Watch For
Several battery-related problems can affect drone operations:
Temperature Sensitivity
Batteries like LiPo types work best in moderate temperatures. Extreme heat or cold can reduce their efficiency.
Charge Cycle Degradation
Every battery has a limited lifespan, typically around 1,000 charge cycles. Over time, you'll notice a decline in performance.
Here’s a quick overview of common battery issues, their warning signs, and potential impacts:
| Battery Issue | Warning Signs | Impact |
|---|---|---|
| Temperature Stress | Rapid power drain, reduced capacity | Shorter flight times, less efficiency |
| Age-related Wear | Inconsistent power levels, shorter flights | Overall decline in performance |
| Overcharging | Swelling, heat generation | Permanent damage risk |
| Storage Damage | Reduced capacity, unstable voltage | Shortened battery life |
Addressing these issues is essential for extending flight time and maintaining reliability.
Getting More Flight Time
To get the most out of your batteries, consider these strategies:
Optimal Operating Practices
Kit, an Agri Spray Drone repair technician, notes:
"On average, six to eight minutes is how long it takes to spray out a tank – ensuring the battery outlasts the spraying cycle."
Flight Planning Optimization
- Fly steady, efficient paths at a consistent altitude.
- Work during moderate weather conditions to avoid temperature extremes.
- Balance payloads properly and stay within recommended weight limits.
Battery Management Protocol
- Calibrate batteries before every flight session.
- Store them in temperature-controlled environments.
- Charge batteries only within 24 hours of planned use.
- Keep an eye on voltage levels during operation.
- Avoid completely draining the battery.
Integrating these steps into your workflow can help reduce downtime and improve overall efficiency.
Additional Tips for Performance
- Use power-saving modes if available.
- Minimize unnecessary weight and always keep spare batteries ready.
For consistent power and smoother operations, rotate your batteries in sync with tank refills. This approach ensures you always have a charged battery ready to go, keeping your drone in the air longer.
3. GPS Signal Problems
Issues with GPS accuracy can disrupt both spray precision and flight control. Here's a breakdown of common GPS challenges and practical steps to ensure effective spraying.
Signs of GPS Problems
Pay attention to these indicators during operations to spot potential GPS issues:
Signal Interference
Interference can come from various sources, such as:
- Power lines and cell towers
- Nearby electronic devices
- Buildings or dense tree cover
- Electromagnetic disruptions
These problems often lead to the following operational impacts:
| GPS Issue | Warning Signs | Impact on Operation |
|---|---|---|
| Signal Blockage | Position drift, unstable hover | Uneven spray coverage |
| Compass Interference | Erratic orientation, spinning | Navigation errors |
| Hardware Malfunction | No GPS lock, position errors | Difficulty maintaining path |
| Software Issues | Delayed response, signal drops | Unreliable autonomous modes |
Improving GPS Performance
Here’s how you can enhance GPS reliability:
Pre-flight Preparation
"Calibrating your drone's compass regularly, especially after transporting it to a new location, can help solve this problem."
Pair this with routine equipment inspections to avoid unexpected disruptions.
Environmental Considerations
Choose your flight area wisely:
- Ensure a clear view of the sky
- Avoid metal structures and interference sources
- Stay away from areas with dense obstacles
- Select open spaces for optimal signal reception
Technical Solutions
- Hardware Maintenance: Keep the GPS module clean and check antenna connections frequently.
- Software Updates: Regularly update firmware and control apps, and monitor system diagnostics for potential issues.
For even greater accuracy, consider upgrading to RTK (Real-Time Kinematics) technology, which delivers centimeter-level precision, even in more challenging environments.
Operational Best Practices
- Check signal strength before takeoff.
- Monitor GPS status throughout the flight.
- Maintain a clear line of sight with the drone.
- Always have manual control as a backup.
"One possible reason for a weak GPS signal is obstacles."
Incorporate these steps into your pre-flight routine to minimize GPS-related disruptions.
4. Clogged Spray Nozzles
Blocked spray nozzles can disrupt your drone's performance, leading to uneven chemical application and wasted resources. Addressing these blockages is essential for consistent results.
Identifying Nozzle Issues
Keep an eye out for these signs of clogged nozzles:
| Warning Sign | Cause | Impact |
|---|---|---|
| Distorted Spray Pattern | Partial blockage or wear | Uneven application |
| Increased Pressure | Complete blockage | Reduced flow rate |
| Visual Residue | Mineral buildup | Inconsistent coverage |
| Irregular Flow Rate | Debris accumulation | Inefficient chemical use |
Inspection Tips
- Look for white mineral deposits around nozzle openings.
- Observe spray patterns during test runs for irregularities.
- Check pressure gauge readings for unexpected spikes.
- Ensure consistent liquid flow across all nozzles.
These checks will help determine when cleaning is necessary.
Keeping Nozzles Clear
A consistent cleaning routine can prevent and fix nozzle blockages, ensuring optimal performance.
Prevention Techniques
-
Regular Maintenance
After each use, follow these steps:- Flush the system with clean water for 30–60 seconds.
- Wipe nozzle tips clean.
- Inspect filters for debris.
- Store equipment in a clean, protected space.
-
Cleaning Methods
For tougher clogs, try these approaches:"When it comes to cleaning spray nozzles, hot water is your friend. It can dissolve residue buildup and loosen grime to restore full spray flow." – Nozzles Supplier
Deep Cleaning Steps
- Soak nozzles in white vinegar for 30 minutes to remove mineral deposits.
- Use 70% rubbing alcohol to break down oil-based residue (also soak for 30 minutes).
- Clear nozzle openings with appropriate tools.
- Test spray patterns to ensure proper functionality after cleaning.
Maintenance Habits
- Clean your sprayer immediately after each use.
- Store equipment in a temperature-controlled environment.
- Conduct weekly inspections to catch potential issues early.
"Keeping your sprayer clean will always eliminate problems like chemical clogging. If you are finished spraying, WASH YOUR TANK OUT!" – Enduraplas Blog
sbb-itb-3b7eef7
5. Spray Drift Control
Spray drift not only wastes chemicals but can also harm nearby crops. In the U.S., it’s estimated that up to 70 million pounds of pesticides are lost annually due to drift[1]. Here’s a breakdown of key factors contributing to drift and their effects:
| Factor | Impact | Risk Level |
|---|---|---|
| Droplet Size | Smaller droplets (under 200 µm) drift more easily | High |
| Wind Speed | Speeds below 2 mph or above 10 mph increase drift | High |
| Temperature | Higher temperatures speed up evaporation | Medium |
| Humidity | Low humidity raises drift risks | Medium |
| Height | Higher spray release leads to more drift | High |
Temperature inversions, which often occur in the early morning or evening, can cause droplets to stay suspended in the air, leading to unpredictable drift over long distances.
"We know that in an inversion, if there is a small amount of drift, you can harm very large areas adjacent to the field." - Tom Wolf, Sprayer Expert and Scientist at Agrimetrix Research and Training
Reducing Spray Drift
Taking the right steps can minimize drift, improve application efficiency, and reduce unintended consequences. Here are some strategies:
Optimal Timing and Conditions
- Spray when wind speeds are steady, between 3–10 mph.
- Avoid spraying during temperature inversions.
- Choose clear, calm weather for applications.
- Keep an eye on humidity levels and adjust accordingly.
Equipment Adjustments
- Use low-drift nozzles, which can cut drift by 50–90%.
- Slow down drone speeds during applications.
- Keep spray booms as low as possible without compromising coverage.
- Lower output pressure to create larger droplets.
Advanced Techniques
- Add drift retardants to your spray mix.
- Increase water volume to produce larger droplets and reduce drift.
- Map fields to identify sensitive areas downwind.
- Select low-volatility pesticide formulations to limit drift.
"Spraying under breezy conditions can be done fairly safely if you follow specific steps. The idea is to understand what the risks are and to manage them." - Tom Wolf, Sprayer Expert
Droplet size plays a critical role in determining how far and how long droplets drift. Here’s a quick comparison:
| Droplet Size | Fall Time (10 ft) | Drift Distance (3 mph wind) |
|---|---|---|
| Very Fine (20 µm) | 4 minutes | 1,100 feet |
| Medium (240 µm) | 6 seconds | 28 feet |
| Coarse (400 µm) | 2 seconds | 8.5 feet |
6. Weather Limits
Weather conditions play a crucial role in determining whether spraying is feasible. Below, we break down the key weather factors that directly affect spray performance.
How Weather Affects Spraying
Different weather elements can influence the effectiveness of spraying. Here's a quick overview:
| Weather Factor | Ideal Conditions | Effect on Spraying |
|---|---|---|
| Temperature | Moderate levels | Impacts product effectiveness and evaporation |
| Wind Speed | Calm to light winds | Affects drift and spray coverage |
| Humidity | Balanced levels | Regulates droplet evaporation rates |
| Delta T | Below 10°C (≈18°F) | Reduces water evaporation risks |
Adapting to Weather Conditions
Using real-time weather data can help you adjust your operations and improve efficiency.
Local Weather Monitoring
- Set up an onsite weather station for accurate, localized data.
- Use handheld wind meters for quick wind speed measurements.
- Track Delta T and temperature trends to avoid inversion risks.
Smart Scheduling
- Spray during the best daily weather windows.
- Perform sensitive applications on cloudy days to reduce risks.
- Adjust water volumes based on temperature and humidity.
- Stay flexible to accommodate sudden weather changes.
| Tool Type | Purpose | Benefits |
|---|---|---|
| Weather Stations | Monitors local conditions | Provides real-time data at spray height |
| Mesonet Networks | Tracks regional trends | Alerts for temperature inversions |
| Weather Apps | Offers forecasts | Visualizes wind patterns |
"The wind speed is really the single most important factor that everyone uses to determine whether it's safe to spray today or not."
- Tom Wolf, Sprayer Expert and Scientist at Agrimetrix Research and Training
It's important to note that wind speeds measured at 3 feet (typical spray height) are about 67% lower than those recorded at standard weather station heights (33 feet). Use this insight to make decisions based on your specific site conditions rather than general weather reports.
When dealing with less-than-ideal weather, adjustments can help maintain effectiveness:
- Increase water volume during hot conditions.
- Opt for coarser spray settings in windy weather.
- Schedule sensitive applications during times with favorable weather.
- Keep an eye on downwind areas to protect sensitive crops or structures.
7. FAA Rules and Permits
FAA regulations are in place to ensure spray drones are operated safely and legally. Recent updates have simplified the certification process, making it easier to obtain the necessary documentation while maintaining safety standards.
Required FAA Permits
To operate spray drones, you'll need the following FAA permits:
| Permit Type | Purpose | Weight Requirement |
|---|---|---|
| Part 107 License | General drone operation | All drones |
| Part 137 Certificate | Agricultural use | All spray drones |
| Part 137 Exemption | Additional clearance | Drones over 55 lbs |
| Aerial Commercial Applicator License | Chemical application | Varies by state |
Starting in March 2023, the FAA introduced a more efficient process for obtaining Part 137 UAS certificates. Instead of visiting local Flight Standards offices, operators can now email FAA Form 8710-3 directly to UAS137Certificates@faa.gov. Once you have the necessary permits, the next step is to ensure full compliance with FAA regulations.
Learn more about getting your agricultural spray drone license.
Following FAA Rules
Registration Requirements
- Register your drone and display its unique N-number.
- Ensure your drone is equipped with approved Remote ID technology.
Operational Guidelines
- Maintain a clear visual line of sight with your drone.
- Adhere to altitude and airspace restrictions.
- Monitor weather conditions closely.
- Keep detailed flight and maintenance records.
"Compliance with drone regulations is crucial not only to avoid penalties but also to ensure the safety and privacy of the public." - Fly Eye
Avoiding Penalties
- Minor violations can result in fines starting at $1,000.
- Serious infractions may lead to penalties up to $27,500.
- Willful violations could result in criminal penalties as high as $250,000.
Given the complexity of FAA requirements, working with certification specialists can help you stay updated and compliant.
Making Your Drone Work Better
Improving your drone's performance starts with consistent maintenance, proper training, and the use of advanced technology. These steps work together to ensure your drone operates at its best.
Regular Maintenance Steps
| Component | Maintenance Task | Frequency |
|---|---|---|
| Arms | Check tightness with a 16 mm socket and verify safety locks | Before each use |
| Motors & Props | Inspect for damage and test motor resistance | Weekly |
| Spray System | Calibrate sensors and verify flow rates | Monthly |
| Batteries | Clean ports with 95% alcohol solution and test charging | After every 10 flights |
Stick to a strict maintenance routine. According to DJI Agriculture, thorough pre-flight checks can help avoid expensive downtime.
Operator Training Basics
Proper training is just as important as maintenance when it comes to getting the most out of your drone.
Technical Skills
- Understanding flight logs and error codes
- Conducting pre-flight inspections
- Mixing chemicals accurately
- Analyzing weather data for safe operation
Safety Practices
- Cleaning tanks and nozzles correctly
- Handling chemicals safely
- Preparing for emergencies
- Keeping detailed documentation
Leveraging Advanced Tools
Modern spray drones come equipped with technology that increases precision and efficiency. For example, RTK-enhanced GPS systems improve positioning accuracy from 1–3 meters to just 2–3 centimeters, ensuring chemicals are applied exactly where needed.
Smart Features
- Variable Rate Spraying (VRS) adjusts chemical application based on crop density
- AI-driven flow rate control ensures even coverage
- Real-time mapping helps optimize flight paths
- Automated obstacle avoidance enhances safety
These features not only improve efficiency but can also cut pesticide costs by up to 40% through precise application. RTK technology minimizes waste and helps reduce environmental impact by targeting specific areas instead of over-spraying.
Better Spray Results
Addressing spray drone challenges requires technical expertise, regular maintenance, and leveraging modern tools. Drones equipped with RTK-enhanced GPS can improve spray accuracy from meter-level to centimeter-level precision, ensuring chemicals are distributed evenly.
Advanced features like Variable Rate Spraying (VRS) and AI-driven flow control systems can reduce chemical use by 30–50% compared to traditional methods. This not only lowers costs but also improves crop protection.
"Understanding these fundamentals lays the groundwork for enhancing efficiency and accuracy in drone spraying operations." - Fly Eye
Quick Performance Checklist
| Factor | Optimal Range | Impact |
|---|---|---|
| Wind Speed | 2–10 mph | Reduces drift risk |
| Flight Height | 6–10 ft | Ensures even coverage |
| Pass Overlap | 10–30% | Prevents missed areas |
This table highlights the essential balance between technical settings and environmental conditions. These parameters are key to achieving consistent results and aligning operational precision with environmental considerations.
To get the most out of spray drones, it's crucial to combine technical precision with environmental awareness. Monitoring weather, mixing chemicals correctly, and planning flights strategically can maximize efficiency while reducing waste and environmental impact.
Emerging technologies like AI-driven micro-dosing, electrostatic spraying, and smart integrations are pushing pesticide reduction even further. These advancements directly address the challenges faced in drone spraying.
Looking ahead, integrating smart farming practices, advanced spraying methods, and ongoing precision upgrades will redefine agricultural spraying. With effective problem-solving and innovative tools, spray drones will continue to make agricultural operations more accurate, efficient, and eco-friendly.
FAQs
How can I keep my spray drone performing well in different weather conditions?
To ensure your spray drone operates efficiently in various weather conditions, keep these tips in mind:
- Extreme temperatures: In hot weather, avoid flying during peak heat to prevent battery overheating or damage to internal components. Allow the drone to cool between flights. In cold weather, batteries may drain faster, so warm them before use and plan for shorter flight times. Always store batteries at safe temperatures.
- Wind: Avoid flying in strong winds that exceed two-thirds of your drone's maximum speed, as this can compromise stability and spraying accuracy.
- Rain: Protect your drone from rain, as water can damage electronics and cause malfunctions. Even if your drone is water-resistant, it's best to avoid exposure to heavy moisture.
By following these precautions, you can minimize weather-related issues and maintain optimal performance for your spray drone.
How can I extend the battery life of my spray drone for frequent use?
To maximize the battery life of your spray drone, follow these tips:
- Use the correct battery: Always use a battery designed for your drone model and consider higher-capacity options if available.
- Avoid overloading: Reduce the payload to only essential equipment to minimize strain on the battery.
- Store and charge properly: Keep batteries in a cool, dry place, avoid overcharging, and never let them drain completely.
- Plan efficient flights: Optimize your flight path to reduce unnecessary altitude changes and sharp turns, which can drain energy faster.
- Protect from extreme temperatures: Both high and low temperatures can damage batteries, so store and operate your drone in moderate conditions whenever possible.
By following these steps, you can improve battery performance and ensure your drone operates efficiently for longer periods.
How can I reduce spray drift and ensure accurate chemical application with my spray drone?
Minimizing spray drift and improving chemical application accuracy with your spray drone involves a combination of proper equipment setup and environmental awareness. Here are some effective strategies:
- Adjust nozzle settings: Use nozzles designed for larger droplet sizes, as smaller droplets are more prone to drift. Ensure nozzles are clean and functioning properly.
- Monitor weather conditions: Avoid spraying in high winds (typically above 10 mph) or during temperature inversions, as these can increase drift. Early mornings or late afternoons often provide ideal conditions.
- Maintain proper flight altitude and speed: Flying too high or too fast can cause uneven application and increase drift potential. Follow the manufacturer's recommendations for optimal performance.
By combining these practices, you can enhance the precision of your spray drone operations while reducing waste and environmental impact.
