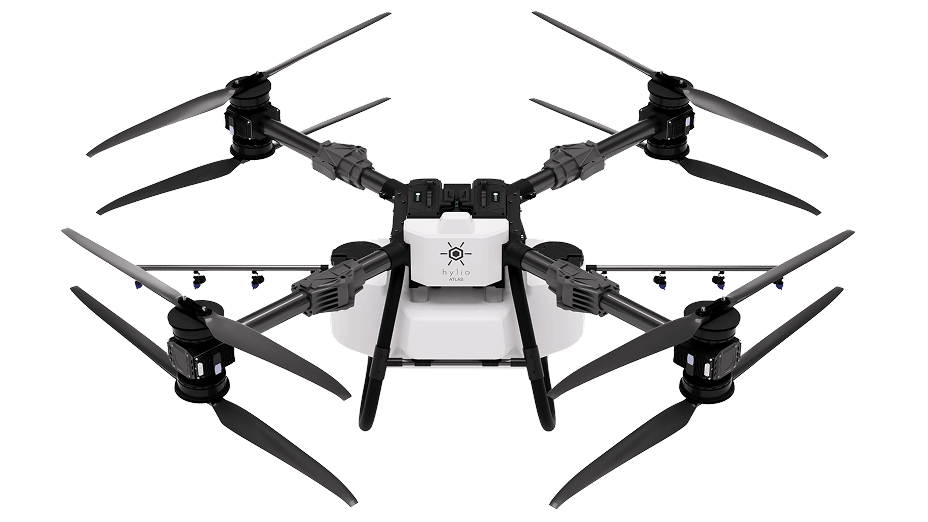

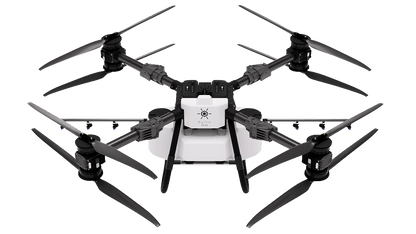

Hylio ATLAS Spray Drone (HYL-300)

Cover 150 Acres an Hour. Seriously.

The Hylio ATLAS (HYL-300) is the flagship of the Hylio fleet. It carries a 250 pound payload, sprays a 50 foot swath, and is built for operators who run 8 to 10 GPA application rates and refuse to leave the field at sundown. This is the aircraft that puts spray drones on equal footing with traditional ground rigs and manned aerial application.

The ATLAS is the right call when your day looks like 500 acres and your boss expects it done by lunch.

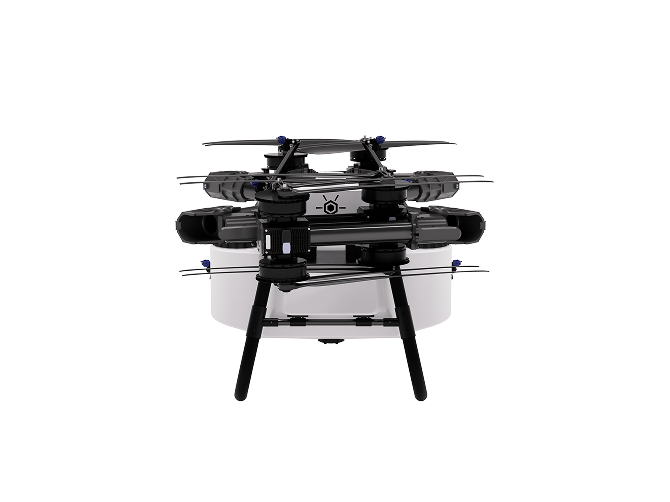

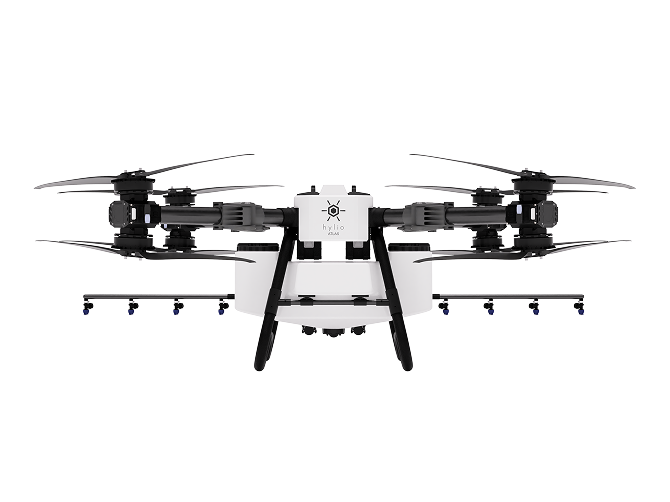

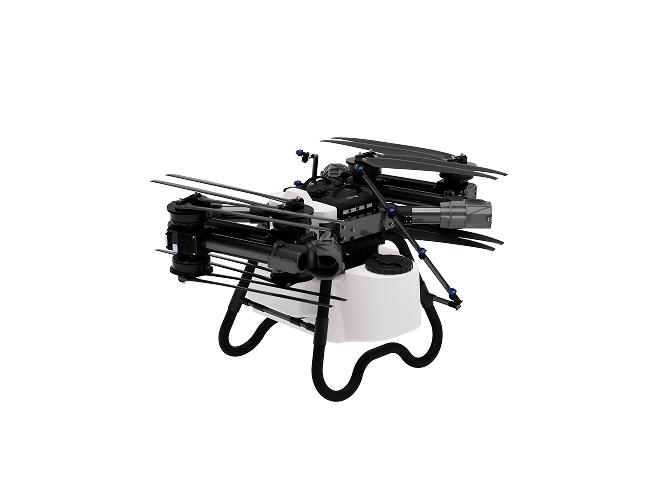

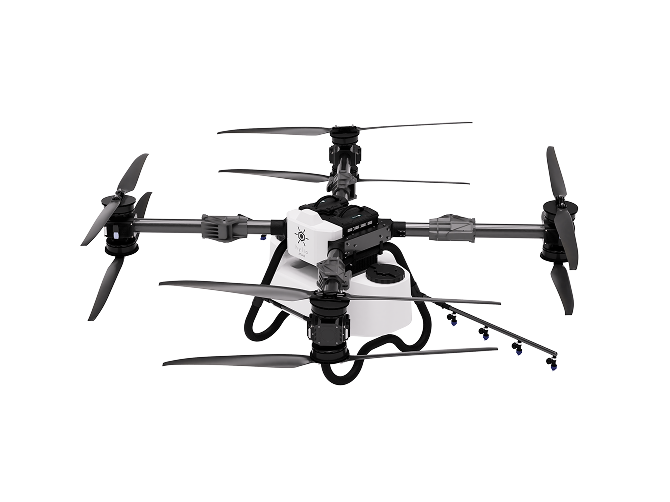

🎥 View the ATLAS from Different Angles

💰 Build Your Package

The listed price reflects the ATLAS base configuration: aircraft, standard accessories, lifetime AgroSol software, training, FAA documentation, and the 1-year warranty. Production scale operators almost always add batteries, parallel chargers, and an RTK base. Contact Drone Spray Pro for a personalized quote on your full setup.

Common options that change the final price:

• Additional batteries (the ATLAS uses 2 per flight, so a 6 to 8 battery rotation is typical for full day operations)
• Parallel charging system to keep the aircraft in the air with no ground wait
• RTK base station for sub-inch positional accuracy
• Atomizer (16 GPM mode) or hydraulic nozzle payload selection
• Granular spreader payload for fertilizer, seed, and cover crop
• 30 gallon liquid configuration vs. 50 gallon granular configuration
• Spare parts kits and service plans

📦 Configuration

• 1x Hylio ATLAS (HYL-300) Agricultural Drone
• 30 gallon liquid spray tank or 50 gallon granular tank (configure to your work)
• Choice of atomizer or hydraulic nozzle systems
• Hylio Smart Tank (real time payload, flow rate, and fill level monitoring)
• 1080p HD FPV camera
• Hylio Radar Sphere obstacle avoidance system
• Lifetime AgroSol Ground Control Software license (Standard Edition)
• Pro toolkit (torque wrench, pliers, screwdrivers, digital level, GPS tracker)
• Comprehensive operator manuals plus simulation training program
• FAA documentation and regulatory consulting
• 1-Year Manufacturer Warranty
• Free domestic shipping to the 48 contiguous states, fully assembled

The ATLAS uses two intelligent batteries per flight. Talk to Drone Spray Pro about the right battery and parallel charger combo to keep two aircraft in the air all day with zero ground wait.

⚡ Key Performance Specs

🛡️ Safety You Can Trust at Scale

• Hylio Radar Sphere: True 360 degree millimeter wave radar avoidance. The aircraft sees in every direction in dust, smoke, fog, and low light. When you are pushing 50 foot swaths near tree lines, this is the system you want.
• Smart Tank Telemetry: Live data on payload weight, flow rate, and fill level in real time. Track every gallon and every pound from the controller.
• 1080p HD FPV: First person camera feed gives you a stable visual on the work as it happens.

🚀 Built to Replace a Ground Rig

• 250 lb Lift Capacity: Carry 30 gallons of liquid or 50 gallons of granular product per flight. This is a heavy lift platform, not a toy.
• 16 GPM Atomizer Mode: Push high flow rates for high GPA applications without skimping on droplet control.
• 50 Foot Swath: Wider passes mean fewer turns, fewer overlaps, and more acres in the same window.
• Swarm Operations: AgroSol Ground Control Software lets one operator coordinate multiple ATLAS units in formation. This is how 1500 acre days actually happen.

🎯 Application Modes

• Hydraulic Nozzle Spray: Up to 8 GPM. The workhorse setup for general row crop spraying, herbicides, and broad acre fungicide passes.
• Atomizer Spray: Up to 16 GPM with tight droplet control. The right choice for canopy penetration and high GPA applications.
• Granular Spreader: Switch to the 50 gallon hopper for fertilizer, cover crop, seed, and aquaculture feed. Up to 80 lbs per minute and 250 acres per hour.

🇺🇸 American Engineering, American Support

• Designed and Built in Texas: The ATLAS is engineered, assembled, and supported from Hylio's Richmond, Texas headquarters. US and global parts.
• NDAA Compliant: Approved for federal, state, USDA, and university programs that require NDAA aerial platforms. This matters for grants, contracts, and conservation work.
• Stateside Service and Parts: When something needs attention, you call a Texas team and the parts ship from a US warehouse. No waiting on overseas freight.

🌾 Ideal Applications

• Custom commercial spray operators running 500+ acre days
• Large row crop operations spraying their own ground
• High GPA fungicide work where 8 to 10 gallons per acre is the standard
• Cover crop, fertilizer, and seed spreading at scale
• Federal, state, and conservation programs requiring NDAA compliant aircraft
• Operations transitioning from ground rigs or replacing a Pawnee/Air Tractor

📋 Licensing Requirements

Commercial agricultural spray drone operations in the US require FAA Part 107 certification, an FAA Part 137 agricultural aircraft operator certificate, and applicable state pesticide applicator licensing. Aircraft over 55 lbs require FAA Section 44807 exemption, which Hylio supports through their FAA documentation and consulting. Drone Spray Pro can connect you with our recommended training partners to get fully certified for the ATLAS.

💡 Drone Spray Pro's Take

The ATLAS is what you buy when you have made up your mind that drones are your spray rig. With 30 gallons in the tank and a 50 foot swath, the math finally works against ground equipment on operations of any size. The 16 GPM atomizer mode is what really sets this aircraft apart. Most spray drones max out at 8 GPM, which forces you to fly low GPA rates whether or not your label allows it. The ATLAS lets you spray the rate the chemistry actually calls for. Pair it with AgroSol swarm control and a parallel charger setup, and you have a one truck operation that covers 1000+ acres a day. If you are a custom applicator, an industrial scale row crop farm, or anyone tired of fighting weather windows with a ground rig, this is the platform that earns its keep in a single season.
