DJI Agras T100

DJI Agras T100 – Agricultural Drone Specs by DroneSprayPro

Meet the DJI Agras T100, a next‑generation workhorse engineered for modern farms. With top-tier performance, modular design, and unmatched versatility, it’s built to power through large-scale operations and streamline your workflow.

📦 Package Options

Choose the plan that suits your operation:

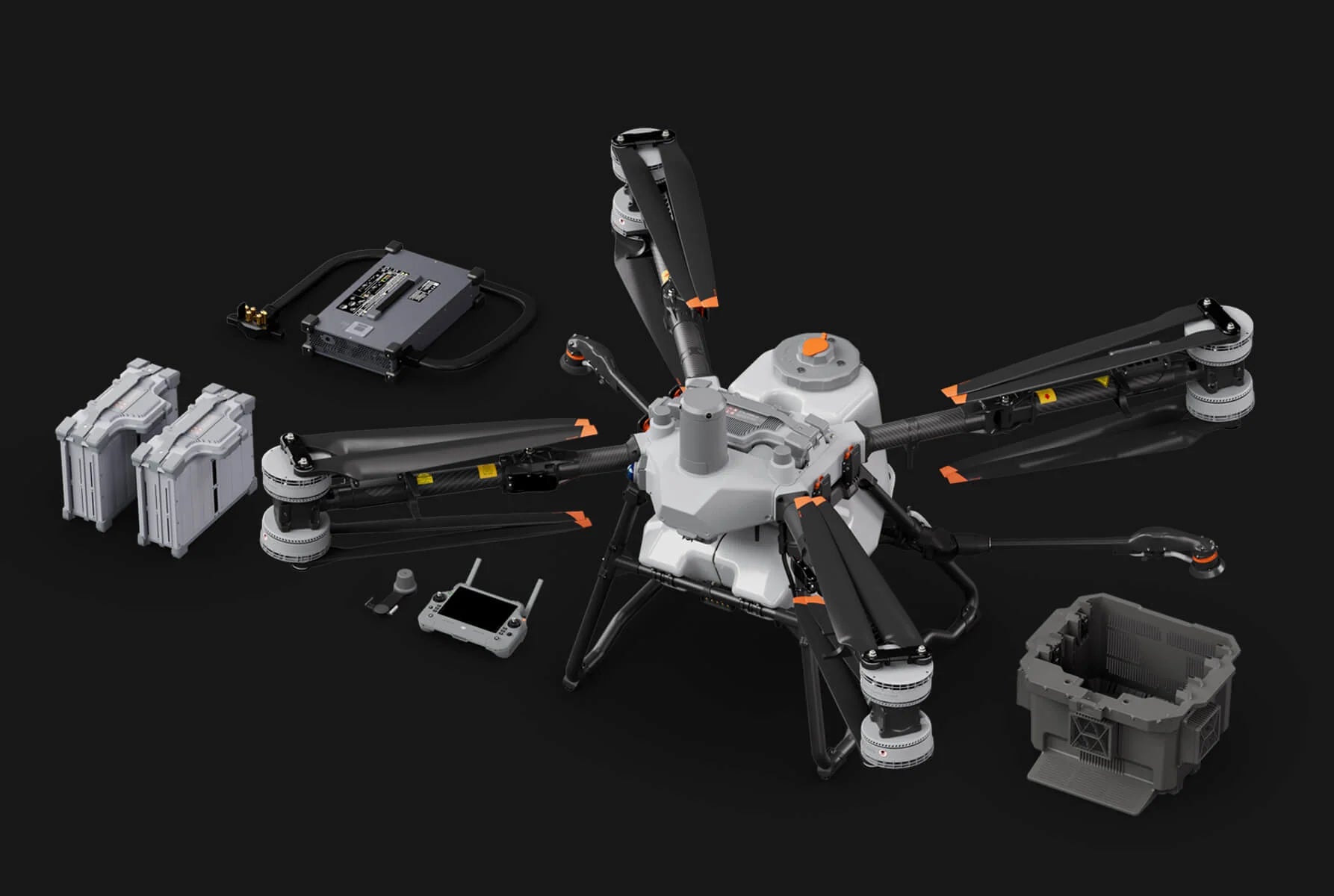

• Professional Bundle – Includes spray, spread, and lift modules.

• Elite Bundle – Adds premium extras like O4 long‑range transmission & advanced charger setup.

🌾 Payload & Dispensing

Spraying

• 75 L liquid capacity = fewer refills

• Adjustable spray width: 5–11 m

• Flow rate: Up to 40 L/min

• Droplets from 10 µm to 500 µm

• Magnetic-drive impeller pump for consistent coverage

Spreading

• 150 L hopper for seeds/fertilizer

• Spread rate up to 400 kg/min

• Supports granules sized 0.5–10 mm

• Broadcasting width: 3–10 m

• Interchangeable spiral augers for different materials

Heavy Lifting

• Up to 85 kg lifting capacity

• Includes 10 m rope for secure transport

🛠️ Design & Durability

• Maximum takeoff weight: 149.9 kg

• 2.33 m wheelbase for stable flights

• 62″ carbon-fiber propellers for powerful lift

• HDPE tank: tough, lightweight, and UV-resistant

• Modular quick-release payload pods

• Coaxial dual‑rotor setup for redundancy and safety

🧭 Precision Navigation & Control

• RTK positioning for cm‑level accuracy

• 360° obstacle awareness via phased-array radar

• LiDAR terrain mapping

• DJI RC Plus 2: 7″ HD touchscreen controller

⚡ Power & Performance

• DB2160 batteries (41 Ah)

• Fast charging: 8–9 min via D14000iE station

• Efficient low-KV motors

• Designed for extended, intensive fieldwork

🛡️ Safety & Reliability

• Front, rear & bottom radar coverage (60 m range)

• 5‑eye fisheye vision system + laser radar for detecting wires and cables

• Intelligent RTH avoids obstacles on return

• Built to perform from 0 °C to 40 °C

• Carbon-fiber construction for ultimate durability

🔧 Specialized Ag Modules

Spraying Mode

• Dual nozzles (expandable to four)

• Uniform droplet spread

• Optional mist head for dense canopy coverage

Spreading Mode

• Centrifugal throw plate for even application

• Anti-clogging system ensures uptime

Sowing Attachment

• Spiral auger doubles sowing efficiency

• Can handle two fertilizer bags at once

✅ Ideal Use Cases

Perfect for:

• Precision spraying of herbicides, pesticides, fertilizers

• Bulk seed/fertilizer spreading

• Field equipment/ tool transport (85 kg lift)

• Crop monitoring, soil sampling, and water analysis missions

🏆 Why Agras T100 Stands Out

• Best-in-class payload: 75 L spray / 150 L spread / 85 kg lift

• Rapid battery turnaround: 8–9 minutes

• Advanced RTK & radar-based navigation

• Modular flexibility: spray, spread, sow, or lift with ease

💡 DroneSprayPro’s Take

The Agras T100 delivers unmatched efficiency and adaptability, raising the bar for agricultural UAVs. It’s a reliable, productivity-enhancing solution perfect for large‑scale farms, specialty crops, and complex tasks. At DroneSprayPro, we’re excited to bring this powerhouse to your operation—with full support, training, and tailored service packages.
